We provide a variety seamless and welded petroleum industry tubulars per the quality standards of : API 5CT、API 5B、API 5DP、API 5L、ISO and any other applicable standards.

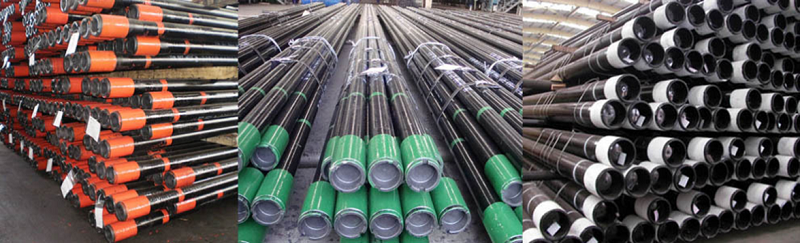

1. Casing

Size: 4-1/2” to 30”

Grade: J55, K55, N80, L80, C90, C95, P110, Q125, V150

Connection: BTC, STC, LTC and Premium connection, such like: VAM, TPCQ, Hydrill connections, etc…

Length: R1, R2, R3

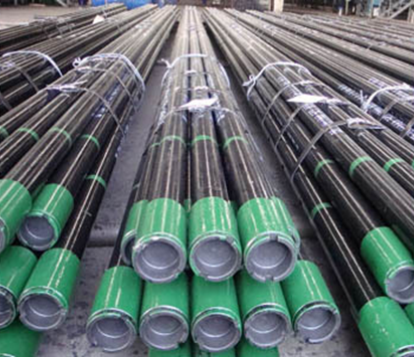

2. Tubing

Size: 2-3/8” to 4-1/2”

Grade: J55, N80, L80, C90, T95, P110

Connection: 8RD and Premium connection, such like: VAM, TPCQ, Hydrill connections, etc…

Length: R1, R2, R3

Type of finish: NU ( Non Upset), EU (External Upset), IEU (Internal and External Upset).

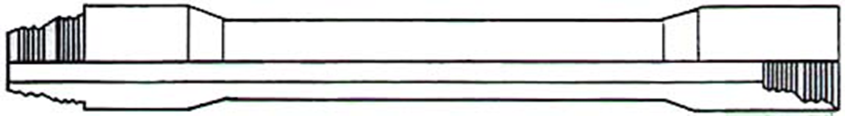

3. Heavy Weight Drill Pipe (HWDP)

Size: 2-7/8”, 3-1/2”, 4”, 4-1/2”, 5”, 5-1/2”, 6-5/8”.

Length: 31ft

Others: Internal coating and hardbanding is available per clients’ requirement.



4. Drill Pipe

Size: 2-3/8”, 2-7/8”, 3-1/2”, 4”, 4-1/2”, 5”, 5-1/2”, 6-5/8”;   Grade: E, X, G, S ;  Length: R1, R2 and R3.

Upset type: NU ( Non Upset), EU (External Upset), IEU (Internal and External Upset).

Others:

(1). Internal coating and hardbanding is available per clients’ requirement.

(2). We can provide high strength, Sour service and double shoulder drill pipes per client’s requirement.


5. Drill Collar


Size: 3-1/8”, 4-1/8”, 4-3/4”, 5”, 6”, 6-1/4”, 6-1/2”, 6-3/4”, 7”, 7-1/4”, 8”, 8-1/4”, 9”, 9-1/2”, 9-3/4”, 10”, 11”.

Length: 9150mm, 9450mm.

Others:

(1)Internal coating and hardbanding is available per clients’ requirement.

(2)Slick drill collar and Spiral drill collar is available.

(3)NMDC (Non Magnetic drill collar) is available.

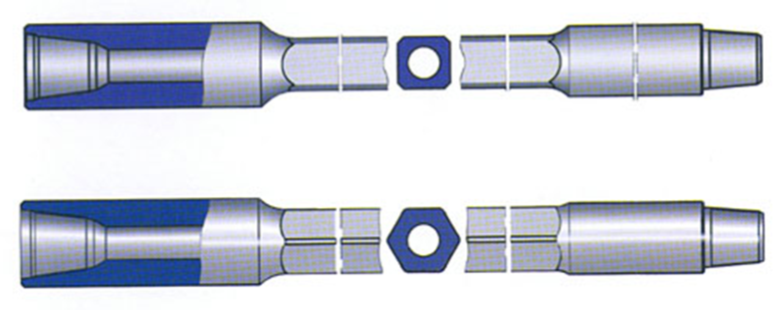

6. Kelly


Size: 2-1/2”, 3”, 3-1/2”, 4-1/4”, 5-1/4”, 6”.

Type: Square Kelly and Hex Kelly.

Length: 40ft, 46ft, 54ft.



7. Pup Joints

We supply full ranges pup joints for casing, tubing, drill pipe, drill collar.



8. Others

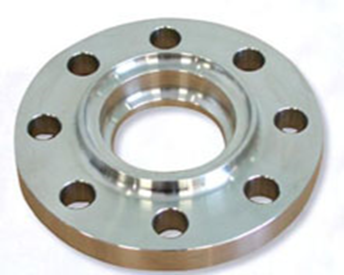

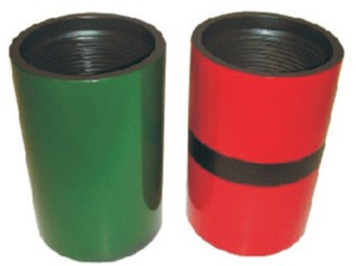

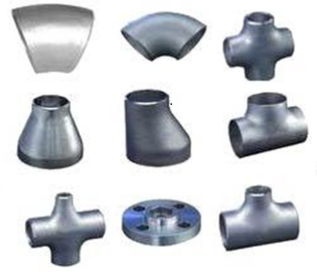

Couplings, Flanges, Elbows, Tees, X-Overs, Lifting nubbins, Lifting caps, Gasket, Bolts and nuts, etc.

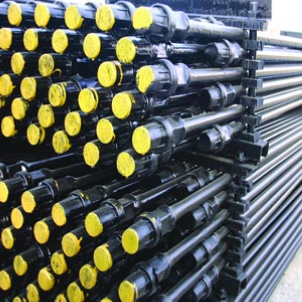

9. Sucker Rod


Sucker rod conforms to API Specification 11B (Oil extraction rod Standard) and other related standards, authorized to use the API monogram.

Grade: C, D, K, KD, HL, HY

Name

API     Standard

API Nominal     Dia

API Length

Weight (kg/pc)

Sucker rod

Grade D            Grade C      Grade K

3/4inch(19mm)

25feet(7620mm)

18.38

30ft(9140mm)

21.77

7/8inch(22mm)

25feet(7620mm)

24.51

30feet(9140mm)

29.04

1inch(25mm)

25feet(7620mm)

32.36

30feet(9140mm)

38.21

Coupling

Grade SM     Grade T

3/4inch(19mm)

4inch(101.6mm)

0.61

7/8inch(22mm)

4inch(101.6mm)

0.78

1inch(25mm)

4inch(101.6mm)

1.17

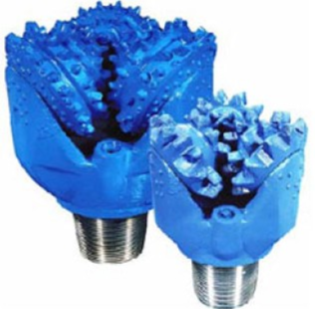

10. Drill Bit

PDC bits and Rock bits are designed and manufactured per API standard.



                  PDC bit                                                              Rock bit
