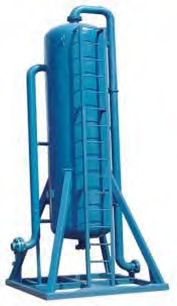

Liquid gas separator of drilling liquid is solids control equipment used to provide pre-degassing to gas
cut drilling liquid. It is mainly used to clear away big bubbles of 3 - 25mm. The liquid gas separator
adopts bottom-sealing structure. It features simple structure, reasonable flow, big disposal capacity,
high degassing efficiency, convenient transportation, installation and service, etc.
| 1.0MPa | 1.6MPa | 4.0MPa | |||||
| YQ-800-1 | YQ-1000-1 | YQ-1200-1 | YQ-1000-1.6 | YQ-1200-1.6 | YQ-1000-4 | YQ-1200-4 | |
| Diameter of the shell (mm) | 800 | 1000 | 1200 | 1000 | 1200 | 1000 | 1200 |
| Discharge capacity (m3/h) | 260 | 300 | 320 | 300 | 320 | 300 | 320 |
| Feeding pipe (mm) | 150 | 150 | 150 | 152.4 | 152.4 | 150 | 150 |
| Gas discharge pipe (mm) | 200 | 200 | 200 | 203.2 | 203.2 | 200 | 200 |
| Mud discharge pipe (mm) | 250 | 250 | 250 | 254 | 254 | 250 | 250 |
| Pressure (mpa) | 1 | 1 | 1 | 1.6 | 1.6 | 4 | 4 |
